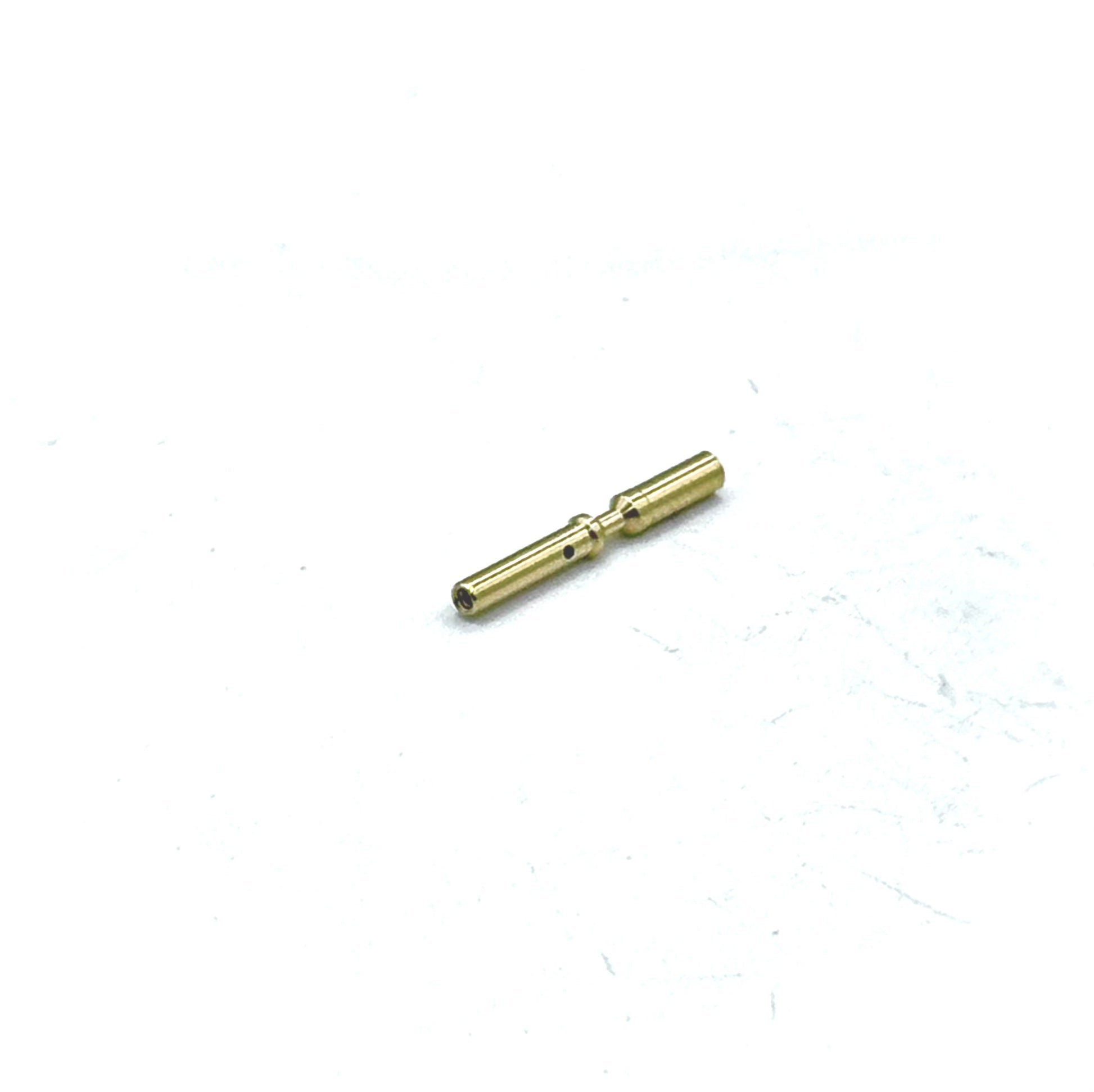

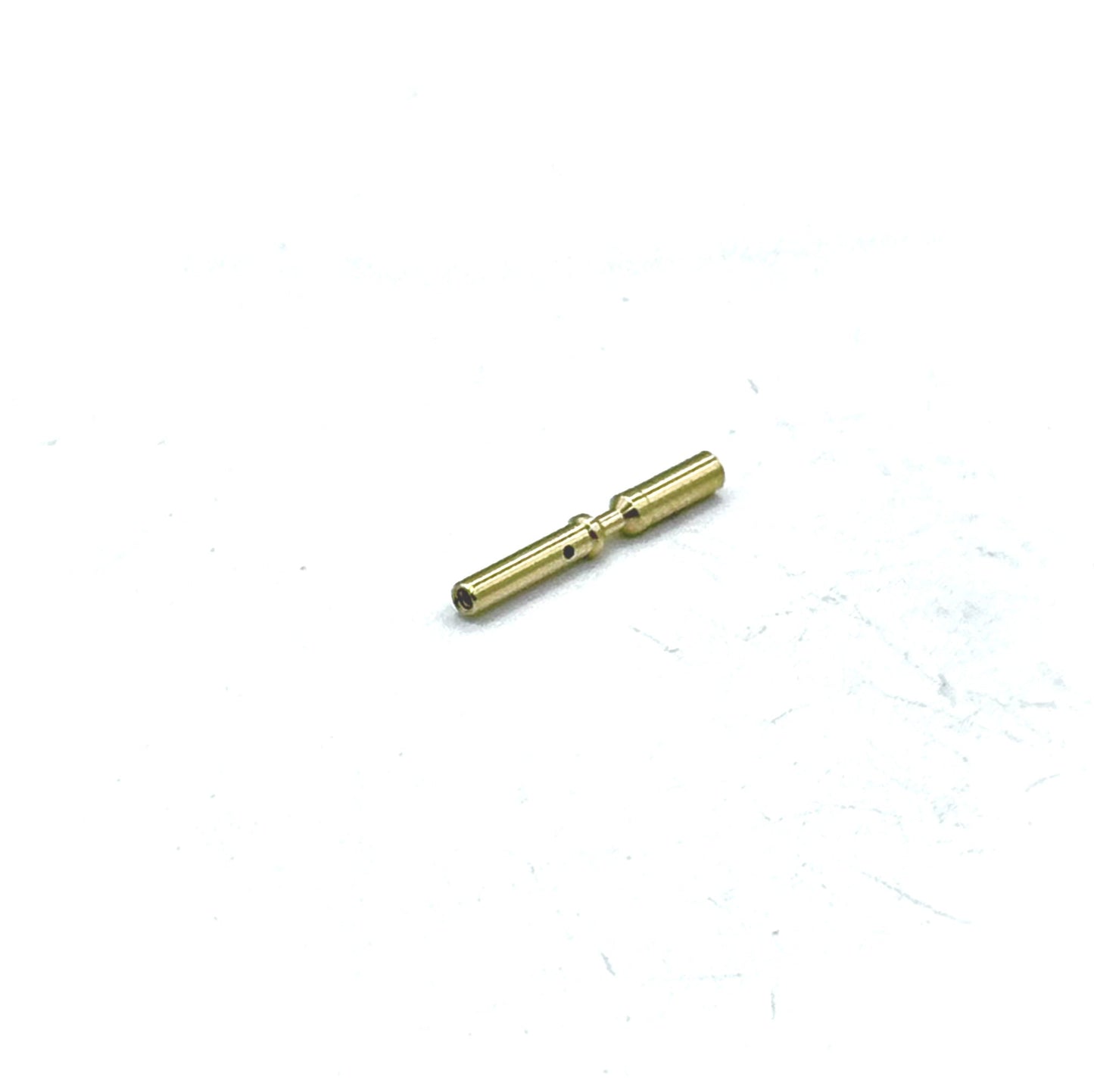

Race Spec® SS 1.0 Solid Contact

Features

• Accepts 16-26AWG M22759/32 and similar specification wire
• Exceeds the ampacity rating of the Superseal 1.0 contact system
• Tested to (100) mating cycles with:
• Less than a 0.04 mV drop
• Less than 0.05 mΩ resistance change
• Provides superior pin engagement
• Gold plated
• Inspection hole
• 1-Piece design (hoodless)
• Direct replacement for AMP Superseal 1.0 contacts
• Strongly recommended to be used with RaceGrade Backshells and a Raychem boot for adequate strain relief
• Fits genuine AMP Superseal 1.0 connectors (MoTeC, Haltech, Emtron, Link, Holley, FuelTech, etc)
• Higher quantity breaks are available, please contact us for more information

Tooling

• Requires RaceSpec Dmc Positioner to use with the Dmc MH860
• Tested to AS22520 Specification
• Crimp Tensile Strength for the MH860 with our positioner
• M22759/32-16, Selector 8     260N
• M22759/32-18, Selector 8     218N
• M22759/32-20, Selector 7     161N
• M22759/32-22, Selector 7     102N
• M22759/32-24, Selector 6     60N


• WARNING
• No testing has been done for other crimp tool frames or locators and we do not advise on the use of any other tooling to terminate this contact other than the combination specified above
• This tooling solution was the result of a private consultation and development with DMC Tools.
