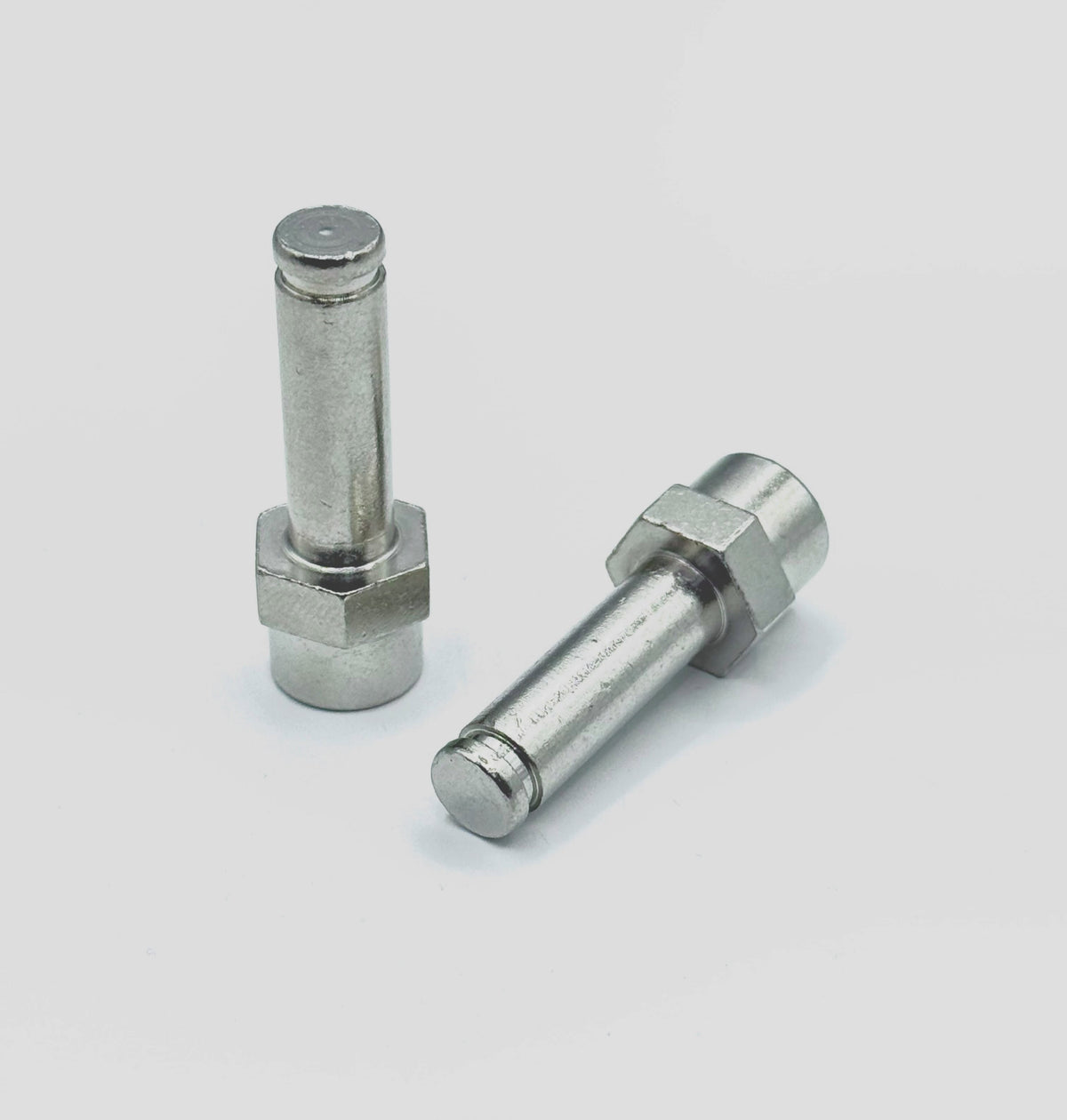

Amphenol RADLOK 5.7mm Stud, Female Threaded - High Current Connector

Amphenol RADLOK 5.7mm stud with M6 female threads, 9.5mm thread depth. Copper. The panel-mount termination point in the RADLOK high current system. Where the bulkhead passes current through a firewall or panel, the stud is what everything lands on.

Female threads mean you bolt your ring terminal or busbar straight to it rather than fighting a stud-and-nut stack in a tight space — one fastener, from the front, on a surface you can actually reach.

Specs: 5.7mm · M6 female threaded · 9.5mm thread depth · copper · RADLOK series

Pairs with our RADLOK 5.7mm connectors. Stocked and shipped from Quebec, Canada
