Collection: DTM

Genuine Deutsch DTM series connectors, stocked in Canada. The DTM is the connector most harnesses use most — size 20 contacts, 7.5 A per circuit, IP67 sealed, -55°C to +125°C, available 2 to 12 way.

Choosing between DTM, DT and DTP. Start with the DTM — size 20 contacts, 7.5 A per circuit, and it covers the majority of circuits in a typical harness: sensors, signals, CAN, switch inputs. Step up to the DT when the circuit needs more current or you're running heavier wire — size 16 contacts, 13 A, 14-20 AWG. Go to DTP for genuine power circuits — size 12 contacts, 25 A — fuel pumps, fans, main feeds. Most harnesses use all three, with DTM making up the bulk of the connector count.

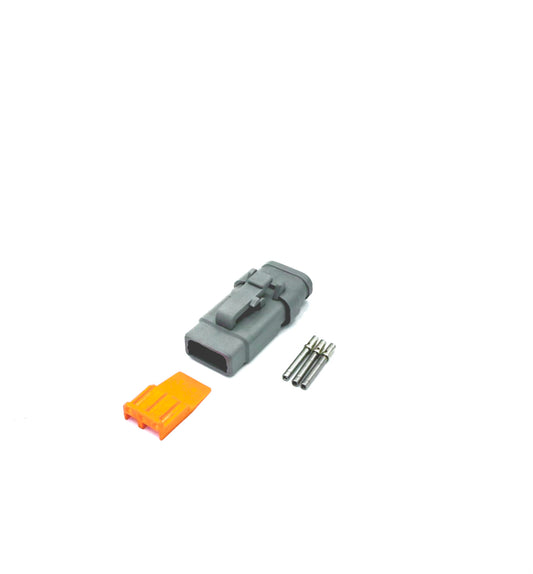

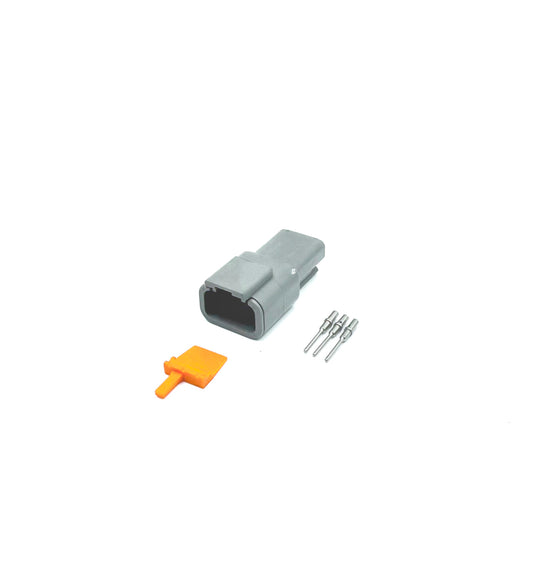

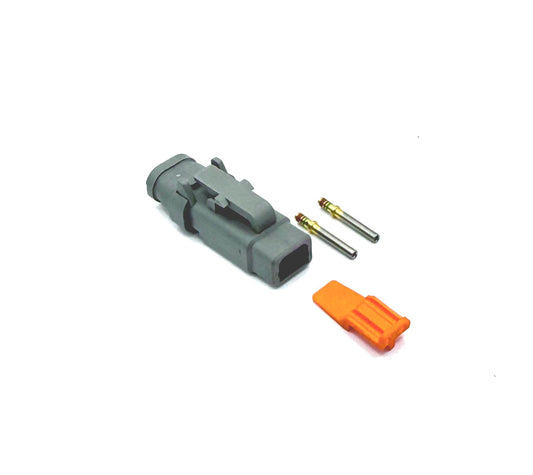

We stock the E007 shrink boot adapter version on the plug side, so the back of the connector can be finished with a moulded boot. Receptacles are the standard housing.

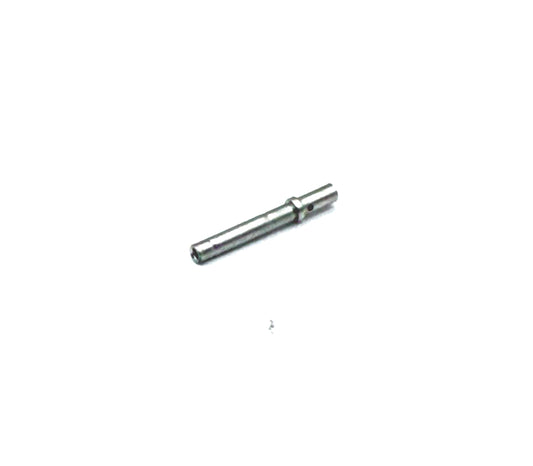

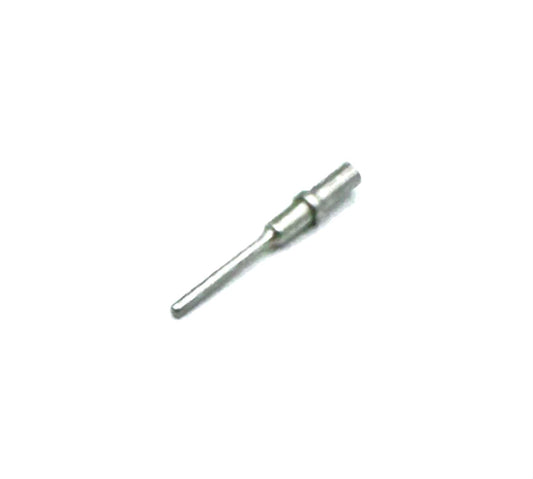

Tooling. AF8 crimper with the TH1A turret. Contacts are size 20 solid machined, and you will want a size 20 removal tool for service work.

Priced in CAD and shipped from Quebec — no duty, no brokerage, no border wait.
