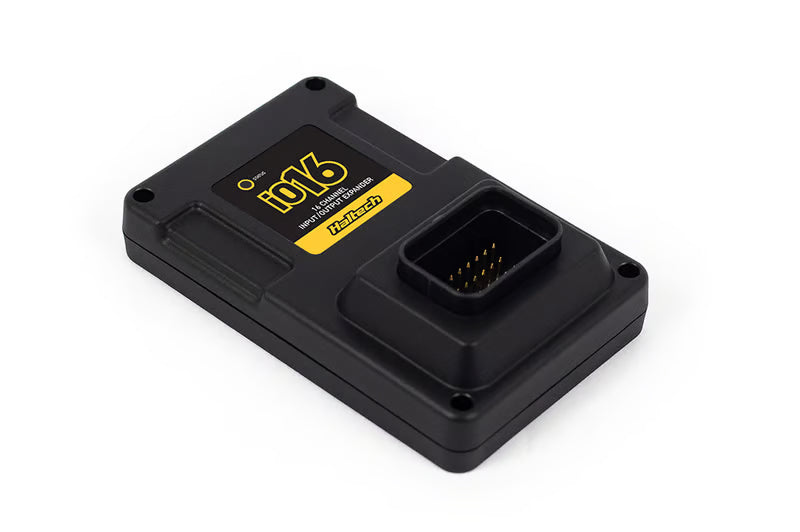

Nexus IO16 Input/Output Expander - 16 Channel

Nexus IO16 Input/Output Expander - 16 Channel

$525.00 CAD
$525.00 CAD
Sale Sold out
Shipping calculated at checkout.
INPUTS
6 x Analogue Voltage Inputs (AVI)
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V
4 x Synchronised Pulsed Inputs (SPI)
  • Reluctor/Digital
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V
OUTPUTS
6 x Half Bridge Outputs (HBO)
  • 8A current (sink/source)
  • Capable of 0-100% duty cycle
  • 2.2khz switching speed
  • NOT suitable for DBW throttle application
WARNING - When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.
OTHERS
  • 3 x 5V output (sensor power)
  • 4 x Sensor ground
Note: Any 5V and sensor ground pins can be paired when wiring sensors.
